HV3658T-WHT-SQ | HV3658T-WHT-SQ-12V - Versa White Square Up & Down Wall Light

Product image 1
1 / 2

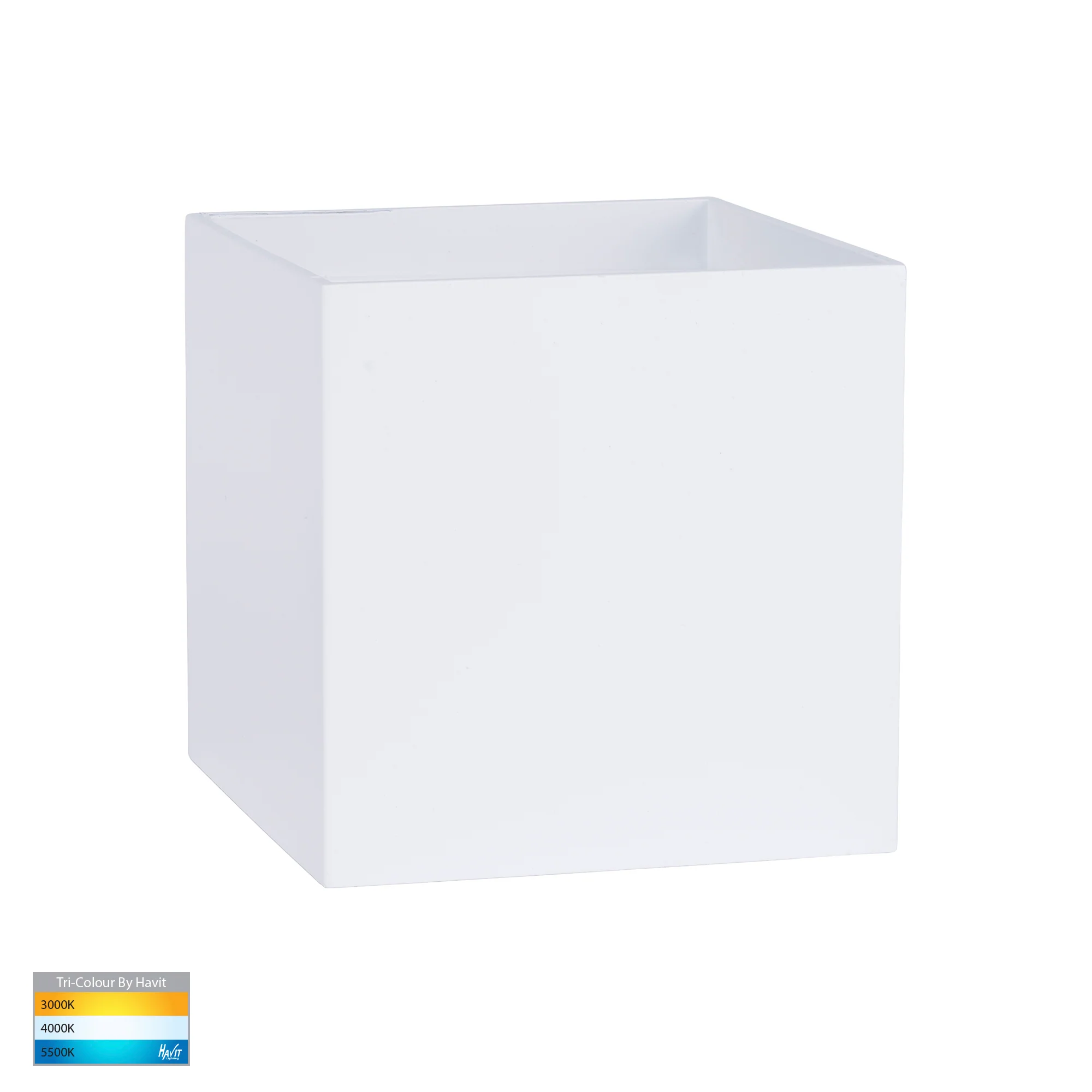

HV3658T-WHT-SQ | HV3658T-WHT-SQ-12V - Versa White Square Up & Down Wall Light

  • Versa Up & Down Square LED wall light
  • Aluminium poly powder coated white
  • Adjustable Beam Angle: 5-120 degrees
  • IP rating: IP65
  • Triac Dimmable - 240v Model Only
  • Input voltage: Available in either 240v AC or 12v DC
  • TRI Colour
  • 3000k, 4000k, 5500k
  • 2 x 3w Built-in LED
  • 3 years replacement warranty (items ordered after 01/01/22)

12v DC Model must be used with a suitable 12v DC LED Driver - View Here

Product Information
 Part Number Colour Temp Lumens Included LED Input Voltage
HV3658T-WHT-SQ 3000k
4000k
5500k
2x 220lm
2x 230lm
2x 240lm
2x 3w 240v
Built in LED
240v
HV3658T-WHT-SQ-12V 3000k
4000k
5500k
2x 220lm
2x 230lm
2x 240lm
2x 3w 12v DC
Built in LED
12v DC
Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions

Select Part Number
From $18.30

Original: $52.28

-65%
HV3658T-WHT-SQ | HV3658T-WHT-SQ-12V - Versa White Square Up & Down Wall Light

$52.28

$18.30

Product Information

Shipping & Returns

Description

  • Versa Up & Down Square LED wall light
  • Aluminium poly powder coated white
  • Adjustable Beam Angle: 5-120 degrees
  • IP rating: IP65
  • Triac Dimmable - 240v Model Only
  • Input voltage: Available in either 240v AC or 12v DC
  • TRI Colour
  • 3000k, 4000k, 5500k
  • 2 x 3w Built-in LED
  • 3 years replacement warranty (items ordered after 01/01/22)

12v DC Model must be used with a suitable 12v DC LED Driver - View Here

Product Information
 Part Number Colour Temp Lumens Included LED Input Voltage
HV3658T-WHT-SQ 3000k
4000k
5500k
2x 220lm
2x 230lm
2x 240lm
2x 3w 240v
Built in LED
240v
HV3658T-WHT-SQ-12V 3000k
4000k
5500k
2x 220lm
2x 230lm
2x 240lm
2x 3w 12v DC
Built in LED
12v DC
Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
