HV3006T-BLK-12V | HV3006T-BLK-240V - Bata Black 6w LED Brick Light

Product image 1
1 / 9

HV3006T-BLK-12V | HV3006T-BLK-240V - Bata Black 6w LED Brick Light

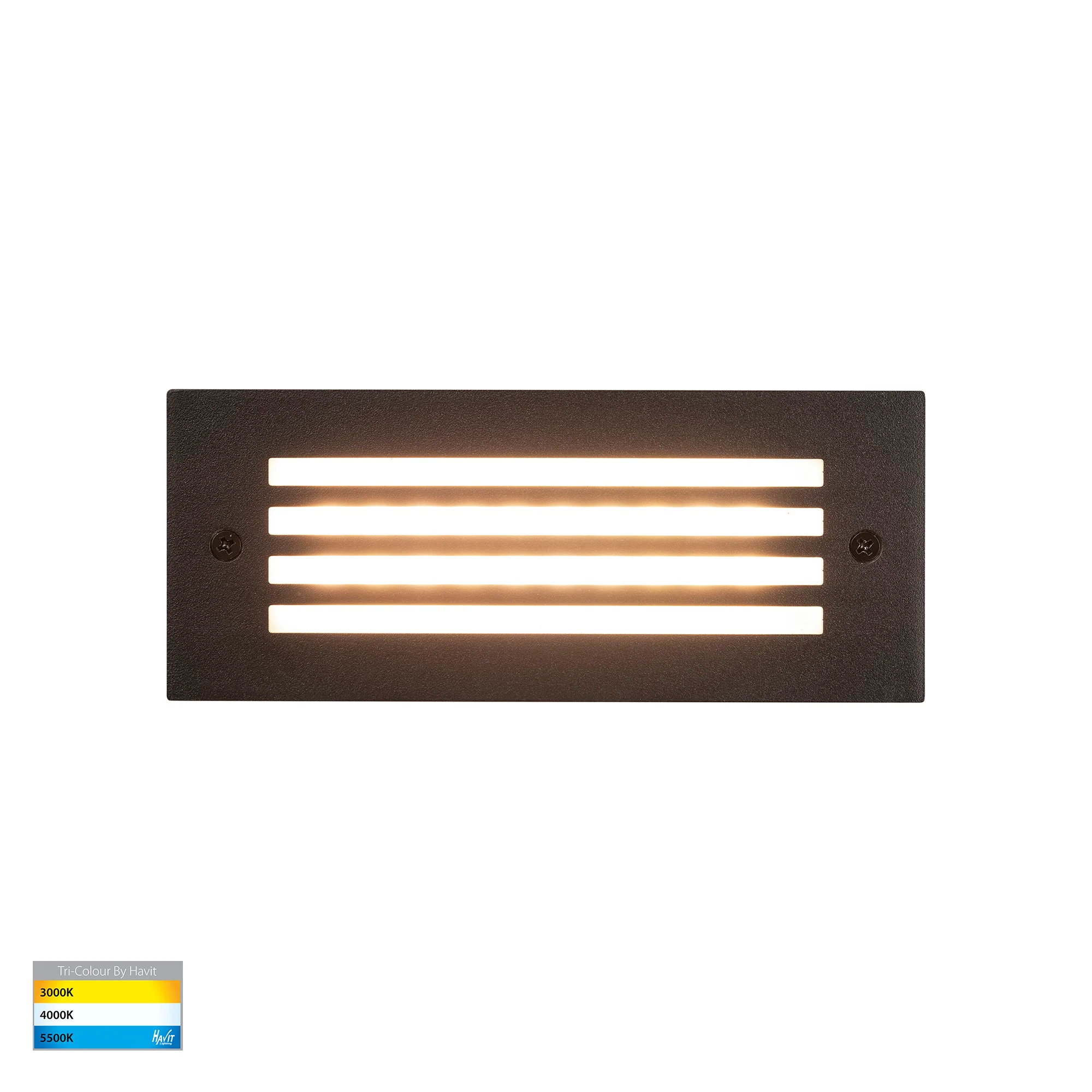

  • Bata Recessed Brick light with grill face
  • Stainless steel poly powder coated black face
  • Powder coated die-cast aluminium body
  • Cutout with Canister: 159mm x 58mm
  • Cutout Without Canister: 155mm x 50mm

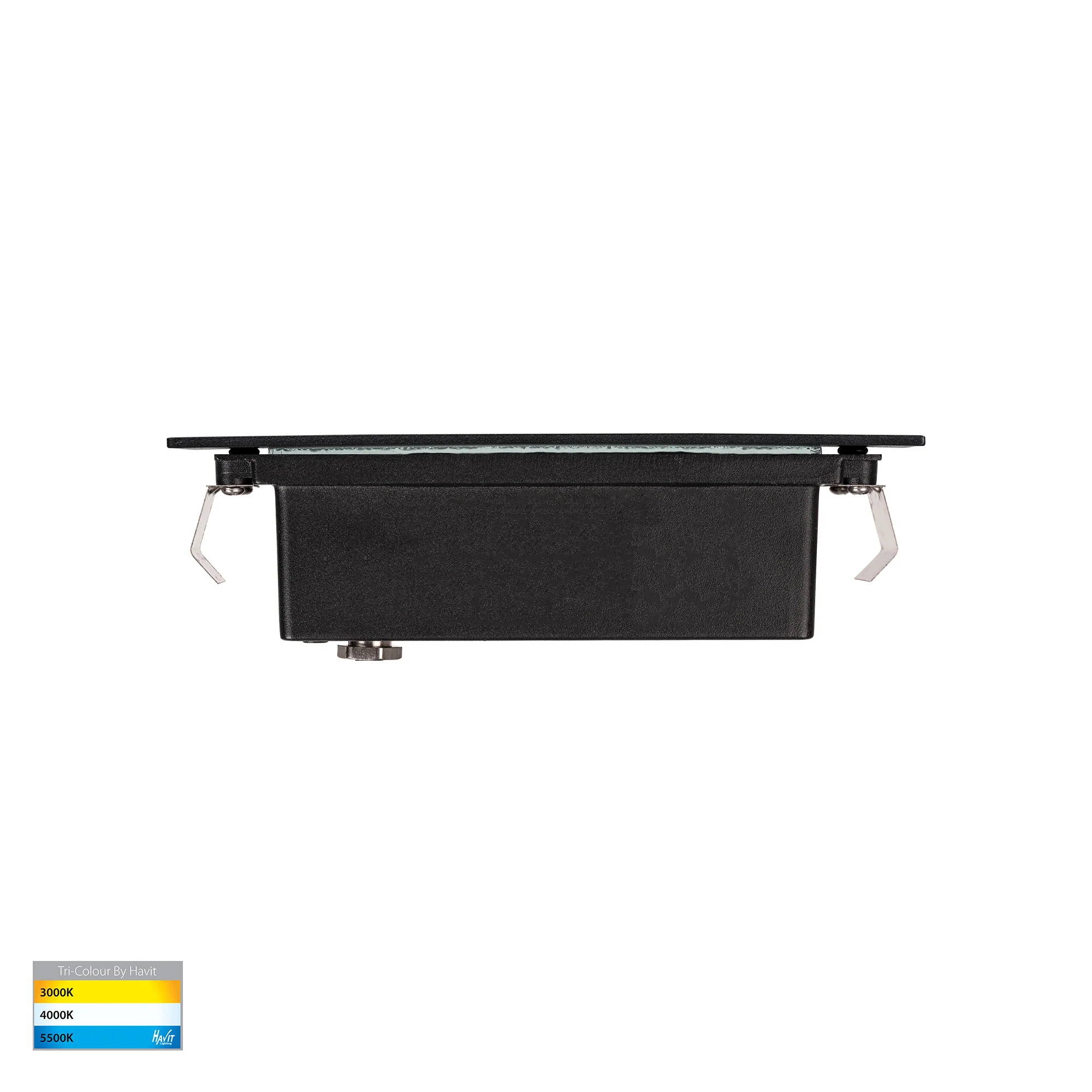

  • Installation Depth: 60mm
  • Frosted tempered glass
  • Tri Colour - 3000k, 4000k, 5500k
  • Supplied with Clips for use in Gyprock Walls
  • IP Rating: IP54
  • Input Voltage: Available in either 240v AC or 12v DC
  • Replaceable LED Panels
  • Built in 6w LED
  • 3 Years Replacement warranty (items ordered after 01/01/22)

12v Model must be used with suitable 12v DC LED driver - View Here

Product Information
Part Number Colour Temp Lumens Included LED Input Voltage
HV3006T-BLK-12V 3000k
4000k
5500k		 480lm
510lm
540lm		 6w 12v DC
Built in LED		 12v DC
HV3006T-BLK-240V 3000k
4000k
5500k		 480lm
510lm
540lm		 6w 240v
Built in LED		 240v
Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions

Select PART NUMBER
From $16.57

Original: $47.35

-65%
HV3006T-BLK-12V | HV3006T-BLK-240V - Bata Black 6w LED Brick Light—

$47.35

$16.57

Product Information

Shipping & Returns

Description

  • Bata Recessed Brick light with grill face
  • Stainless steel poly powder coated black face
  • Powder coated die-cast aluminium body
  • Cutout with Canister: 159mm x 58mm
  • Cutout Without Canister: 155mm x 50mm
  • Installation Depth: 60mm
  • Frosted tempered glass
  • Tri Colour - 3000k, 4000k, 5500k
  • Supplied with Clips for use in Gyprock Walls
  • IP Rating: IP54
  • Input Voltage: Available in either 240v AC or 12v DC
  • Replaceable LED Panels
  • Built in 6w LED
  • 3 Years Replacement warranty (items ordered after 01/01/22)

12v Model must be used with suitable 12v DC LED driver - View Here

Product Information
Part Number Colour Temp Lumens Included LED Input Voltage
HV3006T-BLK-12V 3000k
4000k
5500k		 480lm
510lm
540lm		 6w 12v DC
Built in LED		 12v DC
HV3006T-BLK-240V 3000k
4000k
5500k		 480lm
510lm
540lm		 6w 240v
Built in LED		 240v
Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
